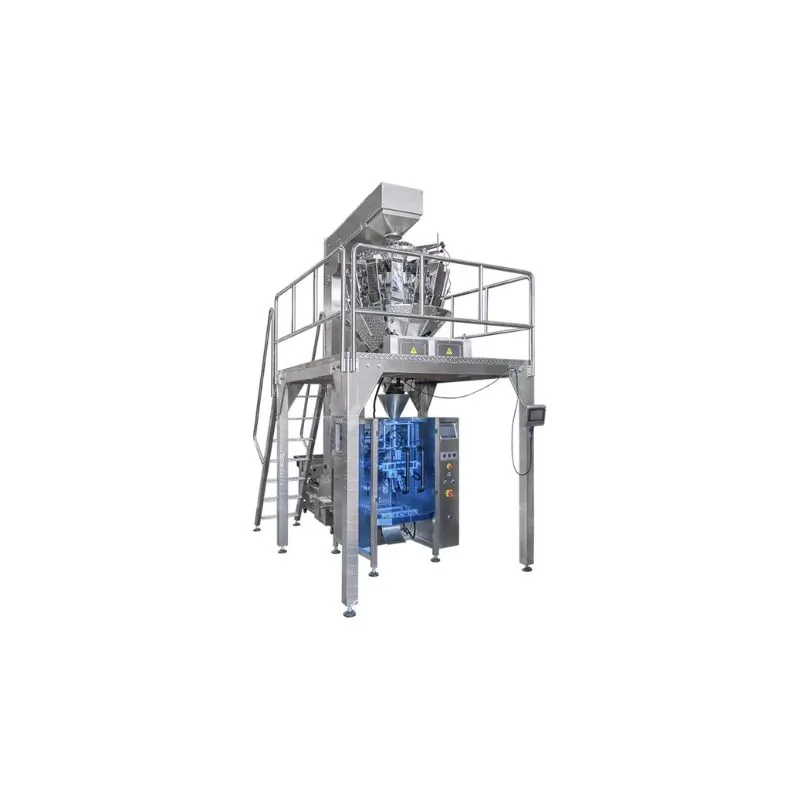

High-Speed Pouch Packing Machine
Model No.: VFFS 420S / 520S / 720S
The machine can process a wide variety of products. Select the automatic operation mode best‑suited to your goods.
Features
304 Stainless‑Steel Frame
• Siemens PLC Control System
• Date Printing Device
• Multi‑Language HMI Touch Screen
• Quick‑Change Film Splice Table
• Automatic Counting & Stop Function
• Photoelectric Sensor
• Safety Guard Door
• Compatible With Most Film Materials
• Storage for 100 Produc
Options

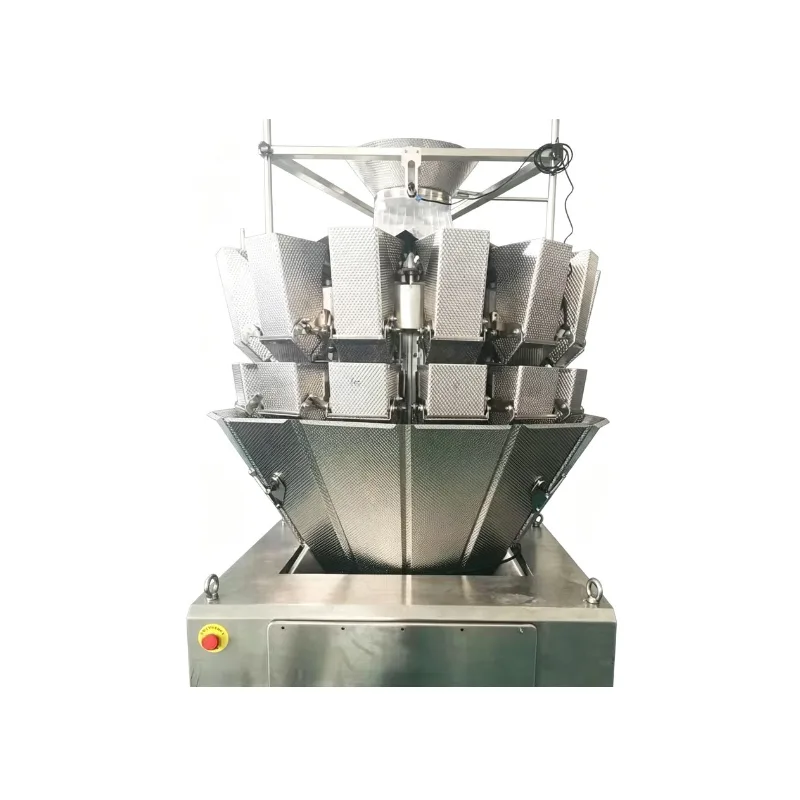

Various weighing systems available for powders, granules, liquids, snacks, tobacco and solid‑state products.
‑ Gusseted Bag Assembly
‑ Hole Punch (Euro‑slot or Round)
‑ Gas Flush Device
‑ Tear Notch

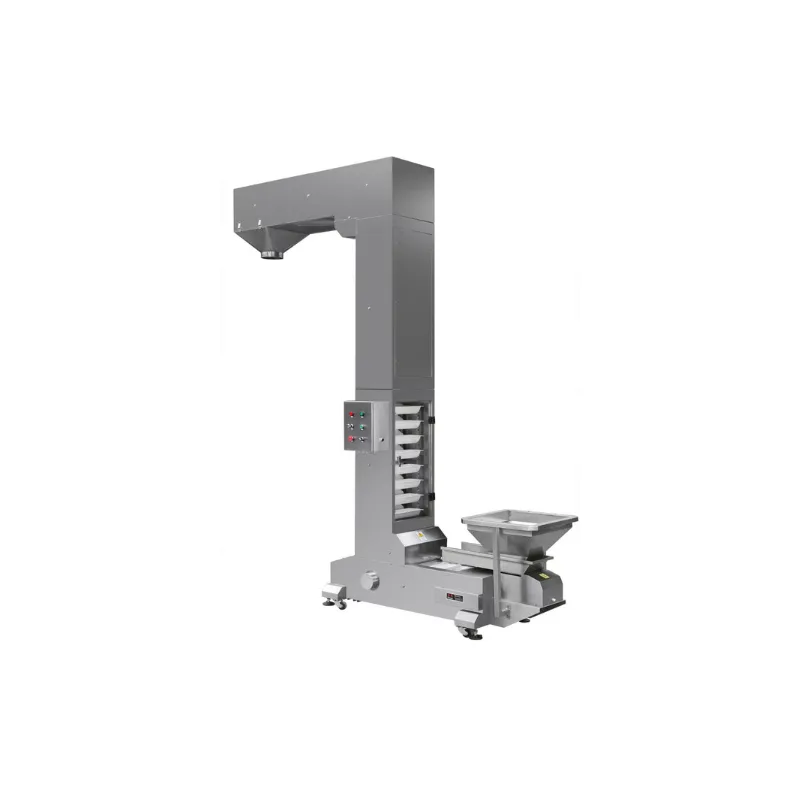

‑ Material & Package Conveyors
‑ Date Printer
‑ Metal Detectors
‑ Label Applicators
‑ Checkweighers
‑ Bag‑in‑Bag Configuration
‑ Bag Deflators
‑ Chain‑Style Bag

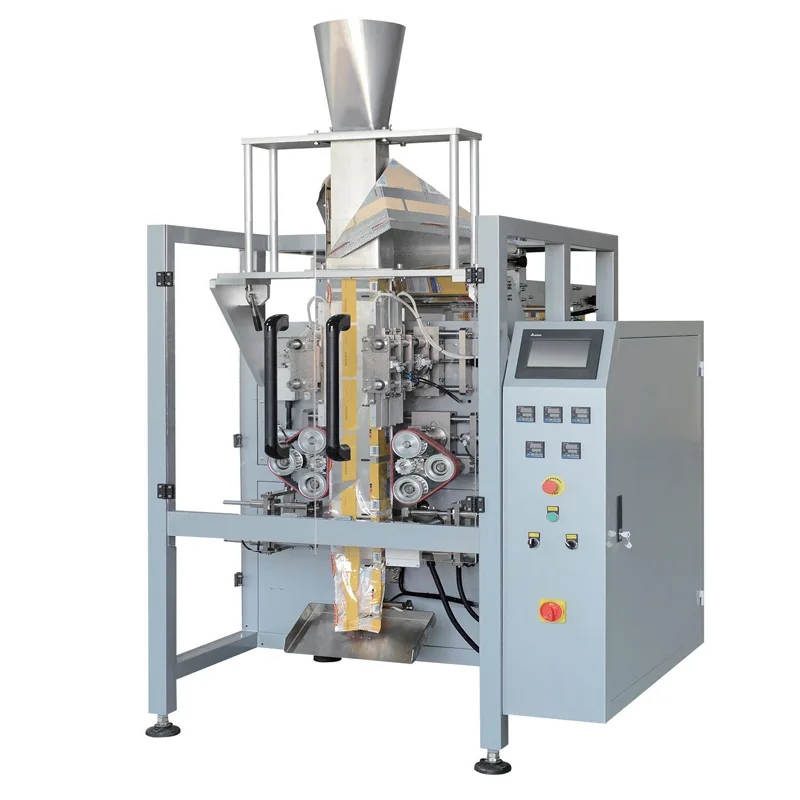

High Speed Pouch Packing Machine
| Model | VFFS420 | VFFS520 | VFFS620 |
|---|---|---|---|
| Machine's Material | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| Packing Speed | 15-70 bags/minute | 15-40 bags/minute | 20-35 bags/minute |
| Bag Size Range | Length: 80-300 mm (3.1-11.8") Width: 80-200 mm (3.1-7.9") | Length: 100-350 mm (3.9-13.8") Width: 100-250 mm (3.9-9.8") | Length: 150-500 mm (5.9-19.7") Width: 150-300 mm (5.9-11.8") |
| Machine Weight | 850KG (1830 lbs) | 900kg (1985 lbs) | 900KG (1984 lbs) |
| Dimension | 1500 x 1400 x 2700 mm (59 x 55.1 x 106.3") | 1700 x 1500 x 2900 mm (66.9 x 59.1 x 114.2") | 1800 x 1600 x 3200 mm (70.9 x 63.0 x 126.0") |
Industries & Applications
High speed Packing Machine’s Video
Frequently Asked Questions
What VFFS models are available?
Four models — VFFS 420S, 520S, 620S, and 720S — covering different bag sizes and speeds.
What is the fastest packing speed available?
Up to 100 bags per minute on the VFFS 420S model.
What bag size range is supported?
From 80x45mm up to 500x360mm, depending on the model selected.
Is the machine built for continuous industrial production?
Yes, all models use a 304 stainless steel frame for durable, high-speed operation.
