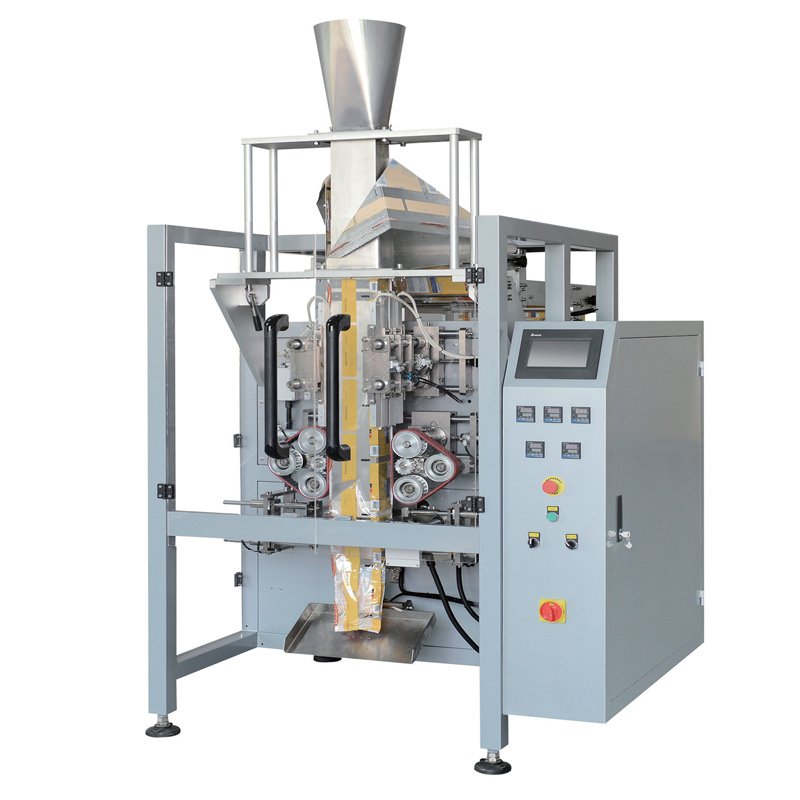

High-Speed Pouch
Packing Machine
Model No.: VFFS 420S / 520S / 720S
The machine can handle many
different kinds of
products-choose the automatic mode that fits
Offers optional filling &weight systems for liquids, powders, and solids.
这是示例文本，单击 “编辑” 按钮更改此文本。
Features
- 304 stainless steel frame
- Siemens PLC control
- Date printer
- Multi-Language HMI
- Quick film splice table
- Automatic count & stop
- Photoelectric eye
- Guard door
- Runs most film material
- Storage for 100 product recipes
这是示例文本，单击 “编辑” 按钮更改此文本。
Options

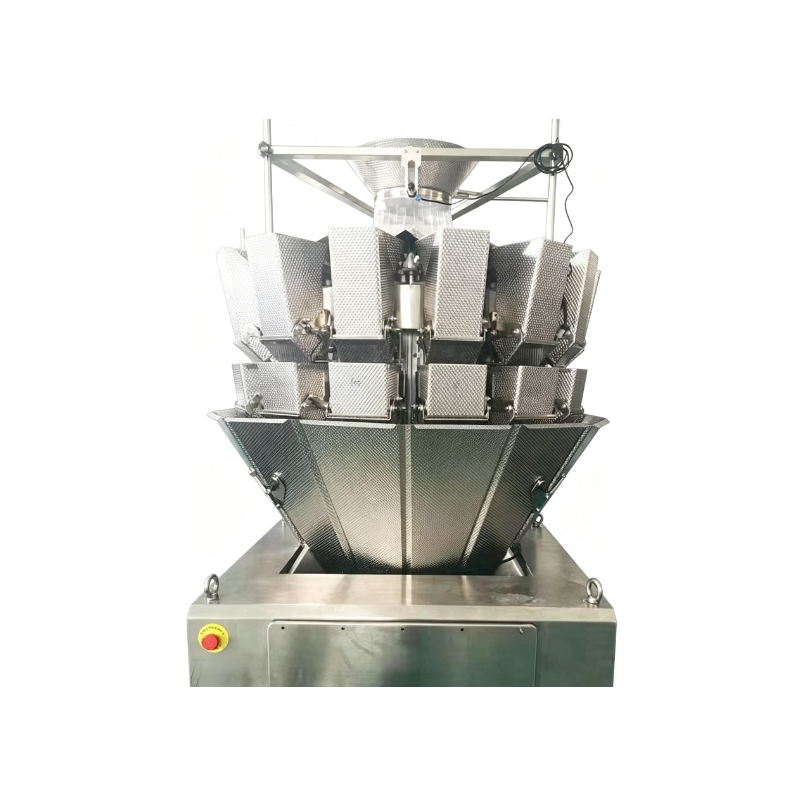

Various weighing systems for powder, granule, liquid, snacks, tobacco or solid products.
Gusseted bag assembly
Hole punch (Euro slot or round)
Gas flush
Tear notch

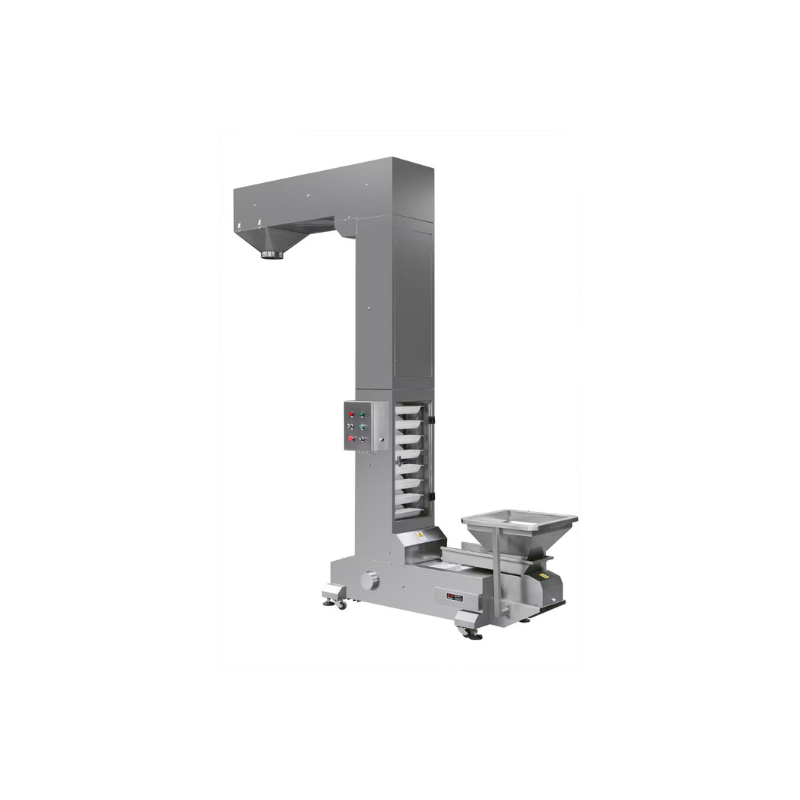

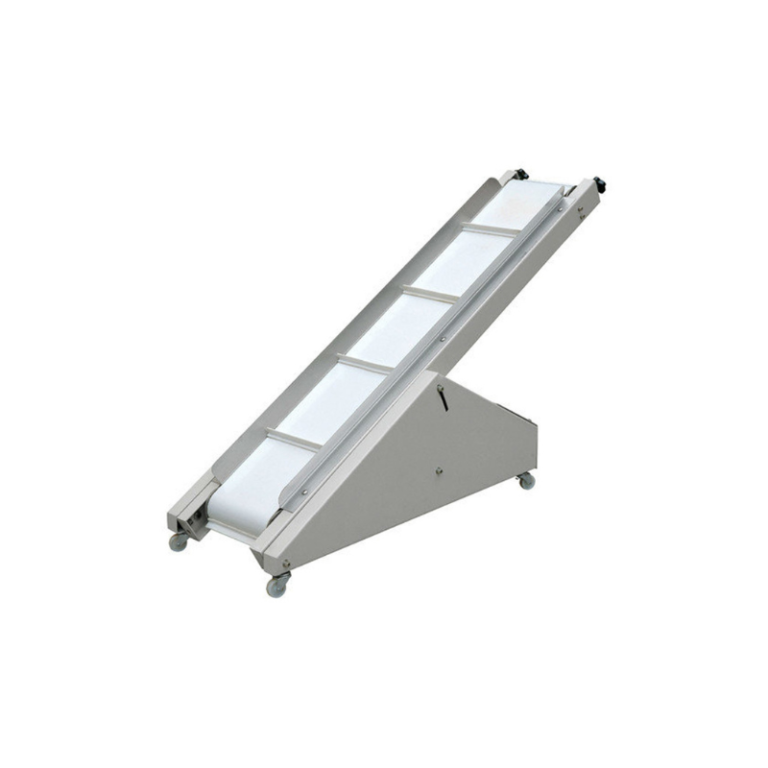

Materials and package conveyors
Date Printer
Metal detectors
Label applicators
Checkweighers
Bag-in-bag configuration
Bag deflators
Chain Style bag
Specifications
| Model | VFFS420 | VFFS520 | VFFS620 |
|---|---|---|---|
| Machine's Material | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| Packing Speed | 15-70 bags/minute | 15-40 bags/minute | 20-35 bags/minute |
| Bag Size Range | Length: 80-300 mm (3.1-11.8") Width: 80-200 mm (3.1-7.9") | Length: 100-350 mm (3.9-13.8") Width: 100-250 mm (3.9-9.8") | Length: 150-500 mm (5.9-19.7") Width: 150-300 mm (5.9-11.8") |
| Machine Weight | 850KG (1830 lbs) | 900kg (1985 lbs) | 900KG (1984 lbs) |
| Dimension | 1500 x 1400 x 2700 mm (59 x 55.1 x 106.3") | 1700 x 1500 x 2900 mm (66.9 x 59.1 x 114.2") | 1800 x 1600 x 3200 mm (70.9 x 63.0 x 126.0") |
Industries & Applications
Shampoo
Scented Tea
Sauce
Powder
Pet Food
Oatmeal
Nuts
Juice
Ice
Honey
Grain
Frozen Food
Dried Fruit
Coffee
Candy
Snack
BagType
