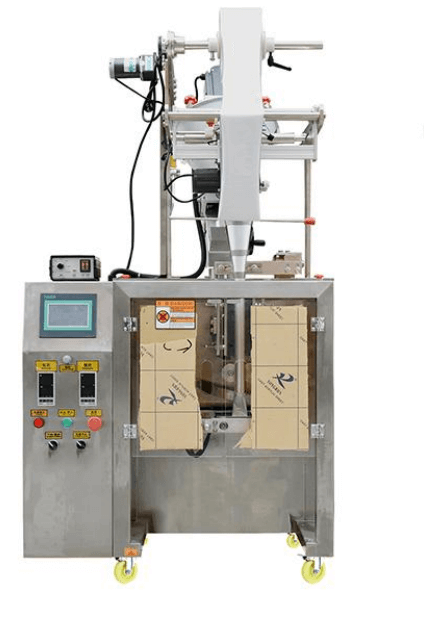

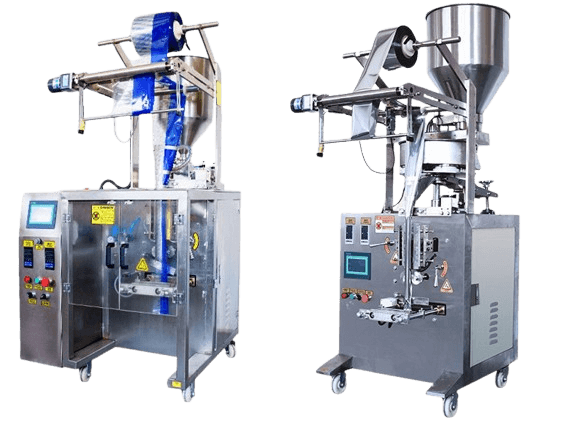

Vertical Packing Machine
Model No.: VFFS-220 / VFFS-300
Speed up to 70 bags per minute
The machine handles most product types – offering a Limited Budget choice. Diverse optional weighing & filling systems suit liquids, powders, and solids.
Max Speed
70 bpm
Features
- 304 stainless steel frame
- Siemens PLC control with touch screen operation
- Date Coding
- Multi-Language HMI
- Automatic count & stop

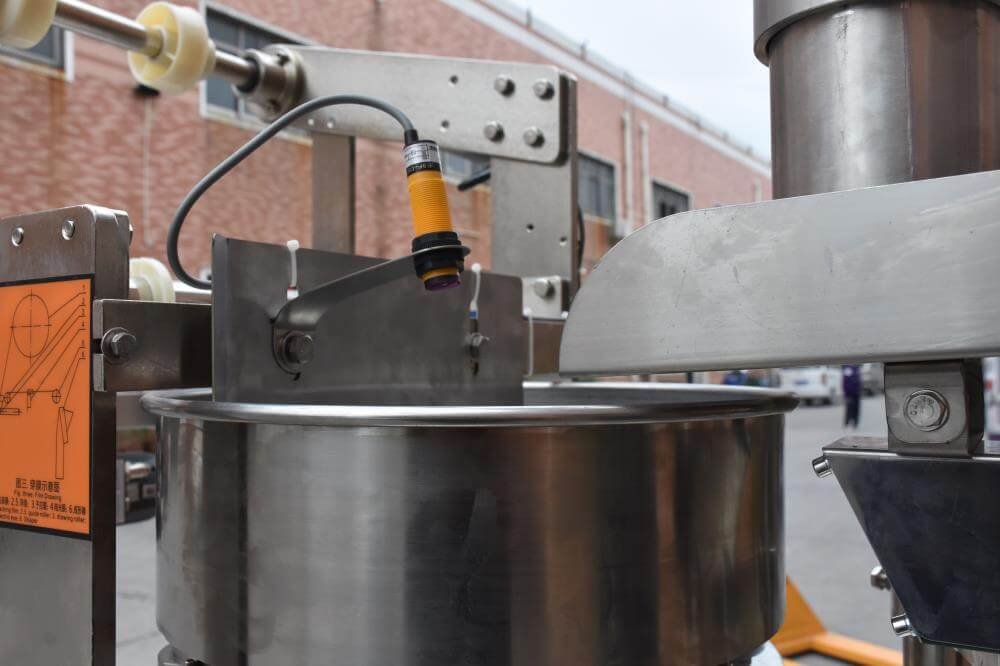

- Photoelectric eye
- Guard door
- Runs most film material
- Storage for 20 product recipes
Bag Size
Min
45 x 20 mm (1.8 x 0.8″)
Max
280 x 200mm (11 x 7.9″)
Options
- Various filling systems for powder, granule, liquid, snacks, herbal, or other customized products
- Hole punch (Euro slot or round)
- Gas flush
- Tear notch
- Materials infeed conveyors
- Package collator conveyors
- Date Printer
- Metal detectors
- Label applicators
- Checkweighers
- Bag deflators
- Chain Style bag
Specification
| Model | DZ220 | DZ300 |
|---|---|---|
| Machine's Material | 304 Stainless Steel | 304 Stainless Steel |
| Packing Speed | 40-100 bags/minute | 40-100 bags/minute |
| Packaging Size | Length: 45-150mm (1.8-5.9") Width: 20-100mm (0.8-3.9") | Length: 50-200mm (2.0-7.9") Width: 40-140mm (1.6-5.5") |
| Maximum Film Width | 220mm (8.7") | 320mm (12.6") |
| Voltage | 220V 50/60Hz | 220V 50/60Hz |
| Machine Weight | 350KG (771 lbs) | 350KG (771 lbs) |
| Dimension | 1260 x 980 x 1800 mm (49.6 x 38.6 x 70.9") | 1260 x 980 x 1800 mm (49.6 x 38.6 x 70.9") |
Industries & Applications
Granule
Liquid
Powder
Sauce
Vertical Packing Machine’s Video
Bag type
Film Material
- The laminated film, laminated paper film, aluminum foil film
Optional Features
- Hanging hole, euro slot, carry handle, degassing valve, tear notch, zipper, spout
Frequently Asked Questions
What is the difference between VFFS 220 and VFFS 300?
VFFS 220 supports film width up to 220mm, while VFFS 300 supports up to 320mm — both run at 40-100 bags per minute.
What packaging sizes are supported?
VFFS 220 handles 45-150mm length; VFFS 300 handles 50-200mm length, depending on the model.
Is this machine suitable for a limited budget?
Yes, it is designed as a cost-effective option for businesses with budget constraints.
Can it store multiple product recipes?
Yes, it stores up to 20 product recipes for quick changeovers.
