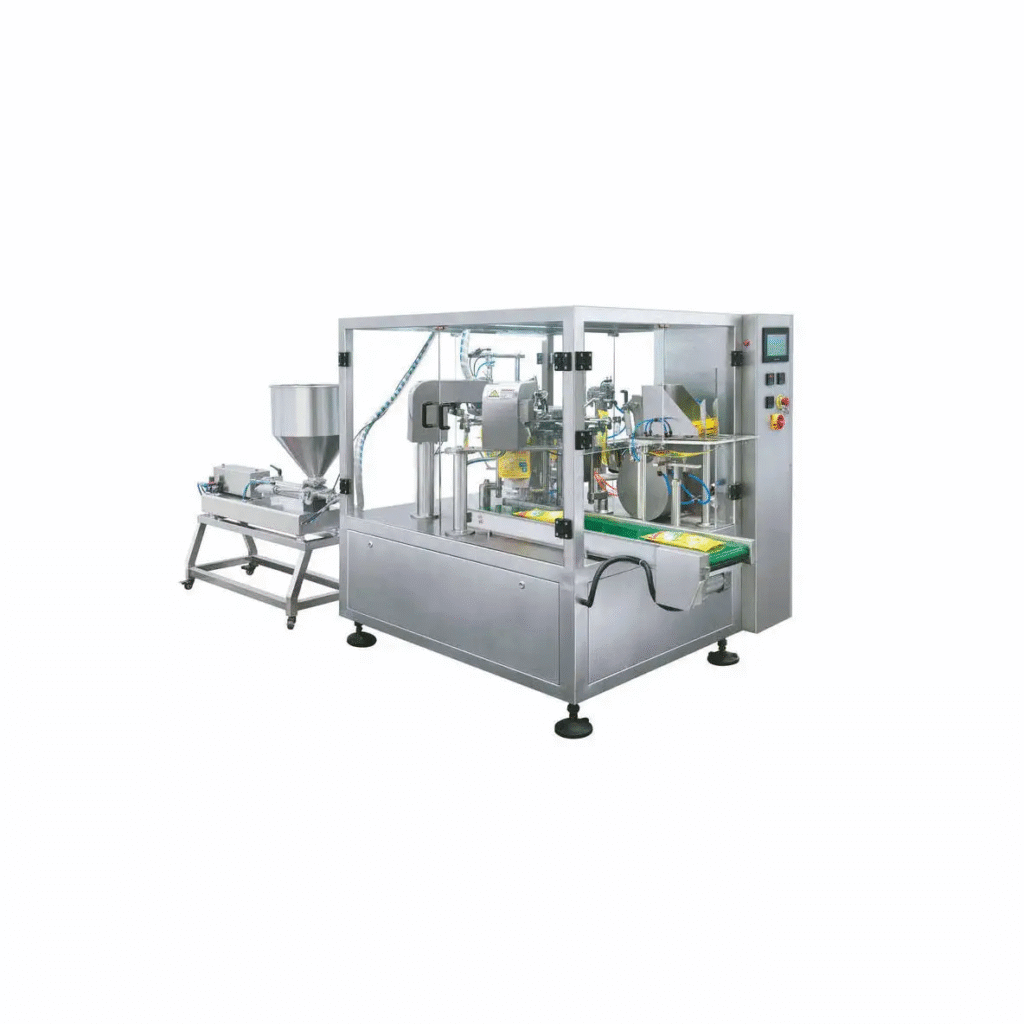

Rotary Premade Pouch Packing Machine
Model No.: DZ 300 / 320 /350
Speed up to 60 bags per minute
High‑efficiency Premade Pouch Packaging Machine at Affordable Price Various
Optional Weighing & Filling Systems for Liquids, Powders and Solids.
Max Speed
60 bpm
Features

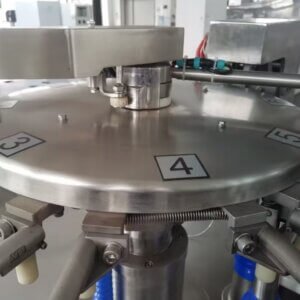

- ‑ 8‑Station Automatic Pre‑Made Bag Packaging System
‑ Automatic Pick‑and‑Place Bag Infeed System
‑ Siemens PLC Control With Touch‑Screen Operation
‑ Multi‑Language HMI Touch‑Screen

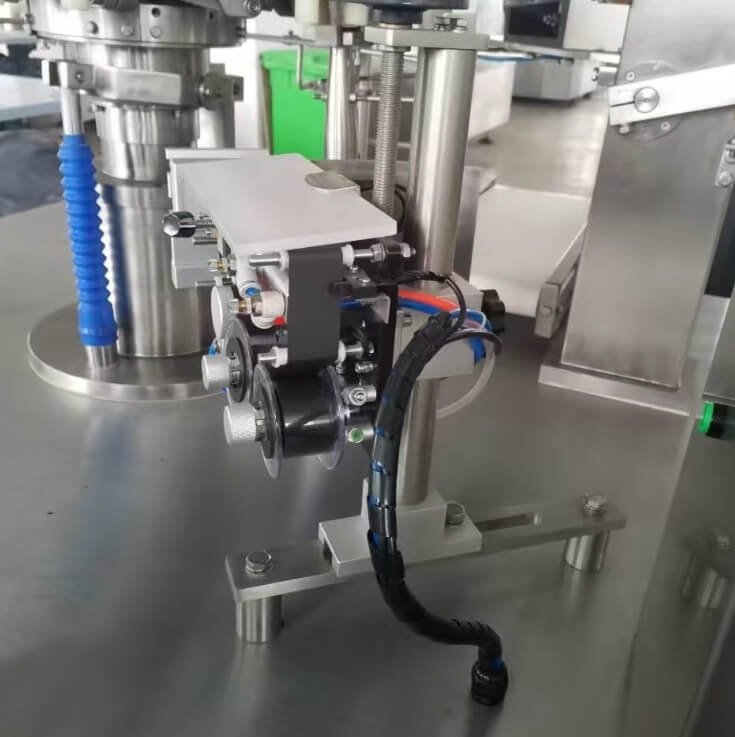

‑ Date‑Coding Function
‑ 304 Stainless‑Steel Frame
‑ Storage for 100 Product Recipes
‑ Production‑Parameter Memory: gripper size, machine speed, sealing temperature and filling volume
Bag Size
Min
100 x 90 mm (1.6 x 1.2″)
Max
500 x 320mm (19.7 x 7.9″)
Options
- Various filling systems for powder, granule, liquid, snacks, herbal, or other customized products
- Zipper opening & Sealing device
- Date coding
- Metal detectors
- Checkweigher
- Bag deflators
- Dust suction nozzles and dust collector
- Material infeed conveyor
- Collating discharge conveyor
- Ethernet connectivity
- Automatic deoxidizer & spoon feeding station
Specification
| Model | DZ-200 | DZ-250 | DZ-300 |
|---|---|---|---|
| Number of Stations | 8 | 8 | 8 |
| Packing Speed | 25-60 bags/minute | 25-50 bags/minute | 20-35 bags/minute |
| Packaging Size | Length: 100-350 mm (1.6-5.5") Width: 90-200 mm (1.2-3.2") | Length: 120-400 mm (4.7-17.7") Width: 120-250 mm (2.0-6.3") | Length: 150-500 mm (4.7-19.7") Width: 150-320 mm (2.0-7.9") |
| Air Consumption | 0.4m³/min | 0.5m³/min | 0.6 m³/min |
| Power | 2.3KW | 3.5KW | 4.5KW |
| Voltage | 380V 50/60Hz | 380V 50/60Hz | 380V 50/60Hz |
| Machine Weight | 1300KG (1100 lbs) | 1400KG (2116 lbs) | 1500KG (2257 lbs) |
Industries & Applications
Shampoo
Scented Tea
Sauce
Powder
Pet Food
Oatmeal
Nuts
Juice
Ice
Honey
Grain
Frozen Food
Dried Fruit
Coffee
Candy
Snack
Rotary Premade Pouch Packing Machine’s Video

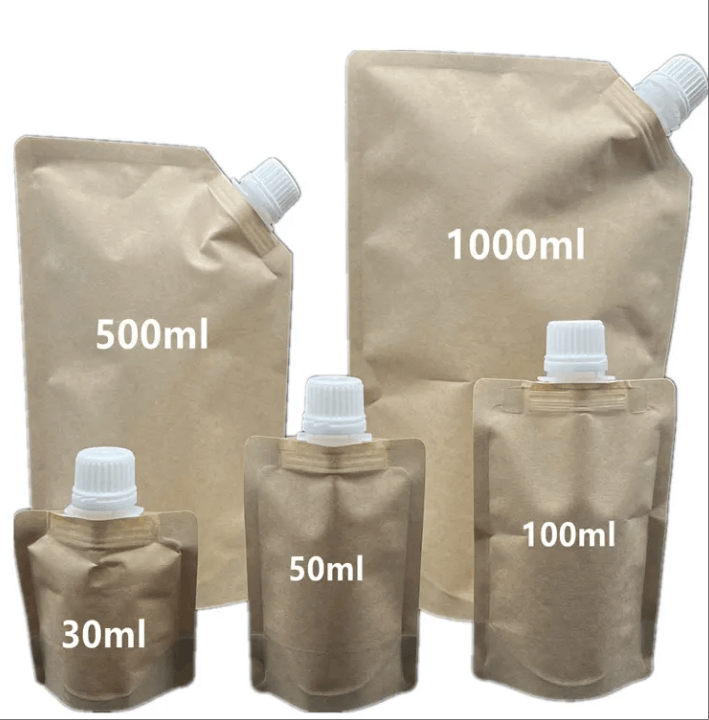

Bag Type
Film Material
- The laminated film, laminated paper film, aluminum foil film
Optional Features
- Hanging hole, euro slot, carry handle, degassing valve, tear notch, zipper, spout
Frequently Asked Questions
What makes this different from a standard premade pouch machine?
It uses a rotary 8-station design with automatic pick-and-place bag infeed for higher-speed premade pouch packaging.
What is the packing speed?
60-80 packs per minute.
What filling range does it support?
10-2500g, depending on product type.
What bag sizes are compatible?
Bag width 80-300mm and length 100-400mm.
