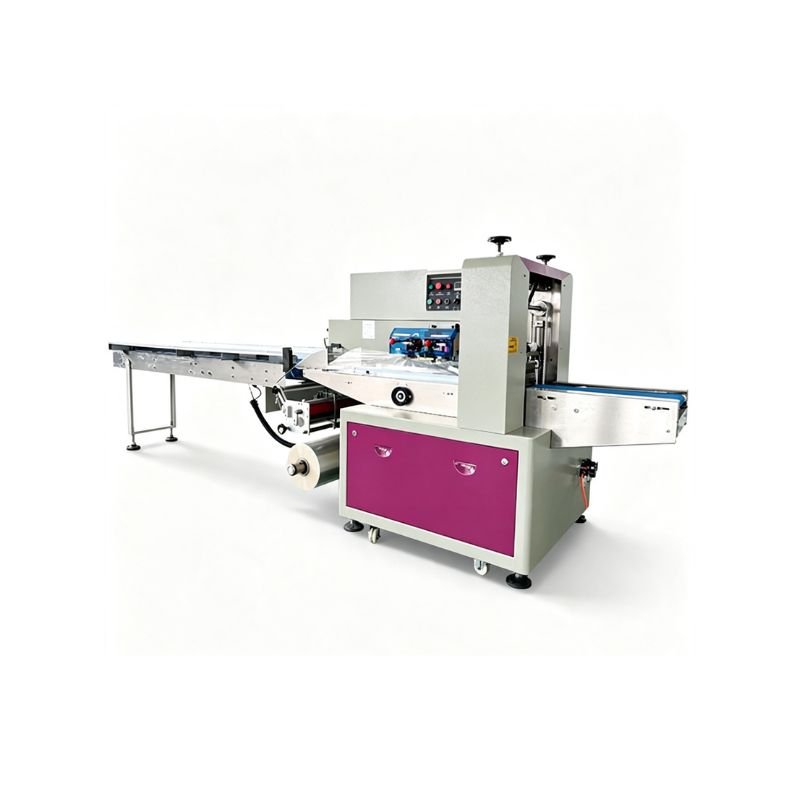

Horizontal Flow Wrap Machine
Model No.: DZ-350 / 450 / 600/700/800
Horizontal Flow Wrap Machine
- Date printing system
- Multi-language interface

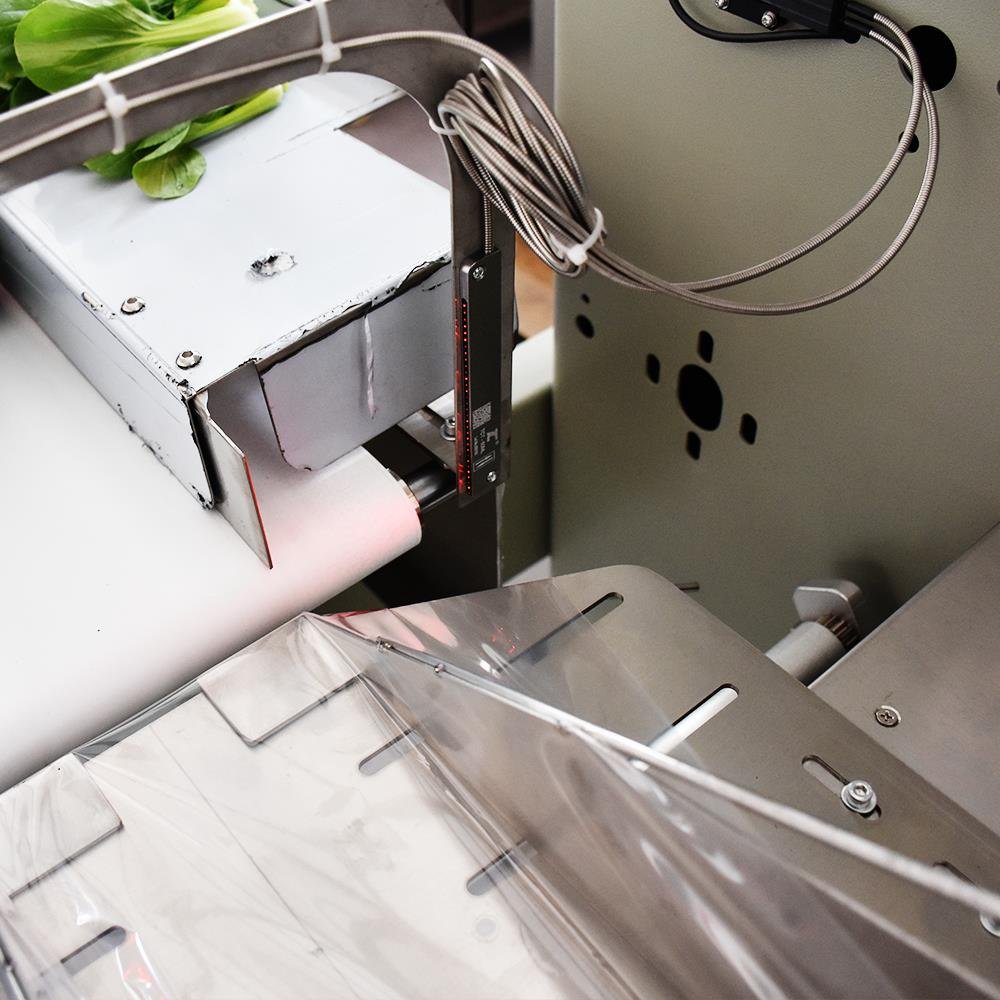

- Photoelectric sensor
- Compatible with most film materials
- Auto-stop function
Option
• Various feeders for candy, chocolate bars, cards or other solid products
• Hole punch (Euro slot or round)
• Gas flush
• Tear notch
• Metal detectors
• Checkweighers
• Bag deflators
• Chain‑Type Feeding System
Specification
| Model | DZ-350 | DZ-450 | DZ-600 |
|---|---|---|---|
| Voltage | 220V 50-60Hz (Customizable) | ||
| Packing Speed | 20-200 bags/minute | 15-70 bags/minute | 15-70 bags/minute |
| Bag Size Range |
Length: 40-140mm (1.6-5.5") Width: 30-80mm (1.2-3.2") Height: 5-30mm (0.2-1.2") |
Length: 120-450mm (4.7-17.7") Width: 50-160mm (2.0-6.3") Height: 10-80mm (0.4-3.1") |
Length: 120-500mm (4.7-19.7") Width: 50-200mm (2.0-7.9") Height: 10-100mm (0.4-3.9") |
| Maximum Film Width | 350mm (13.8") | 450mm (17.7") | 600mm (23.6") |
| Total Power | 3.2KW | 3.2KW | 3.6KW |
| Machine Weight | 500KG (1100lbs) | 960 KG (2116lbs) | 1160KG (2257lbs) |
| Machine Size | 4000x950x1500 mm (157.5x37.4x59.0") | 4380x870x1500 mm (172.4x34.3x59.0") | 4380x970x1500 mm (172.4x38.2x59.0") |
industries&Applications
Vegetable
Biscuit
Bread
Cake
Candy
Chocolate Bar
Cookies
Dinnerware
Electronic
Hardware
Hotel Products
Ice Cream
Masks
Perfume Card
Spaghetti
Transparent Tape Packing Machine
Dozon’s pouch packing machines are in line with international standards and are widely received around the globe.
Horizontal Flow Wrap Packing Machine’s Video
Frequently Asked Questions
What products can be packaged with this flow wrap machine?
It is used for chocolates, candies, masks, muffins, cookies, and similar items in pillow bag packaging.
What packing speed can I expect?
40-110 packs per minute, depending on the model (350-800 series).
What film types are compatible?
Heat-sealable BOPP film, OPP laminated PE film, PET laminated film, and other heat-sealable laminated films.
What additional features are available?
Options include metal detectors, checkweighers, date printers, and gas flush.
