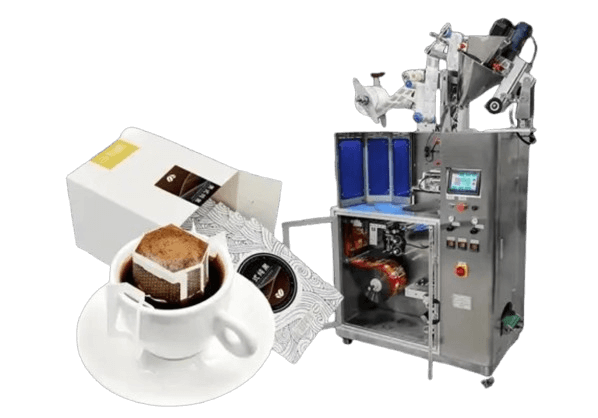

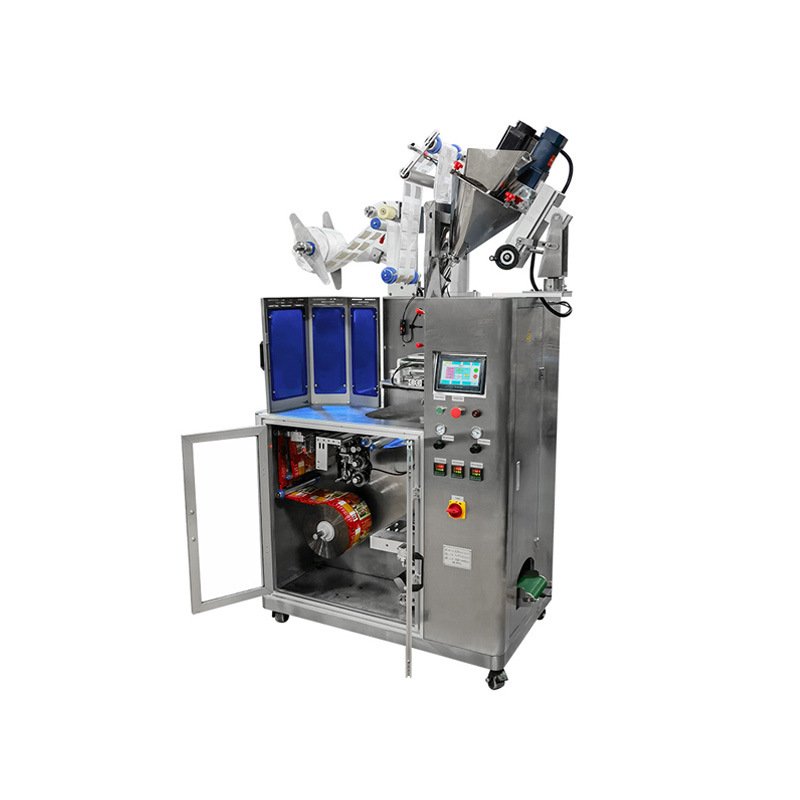

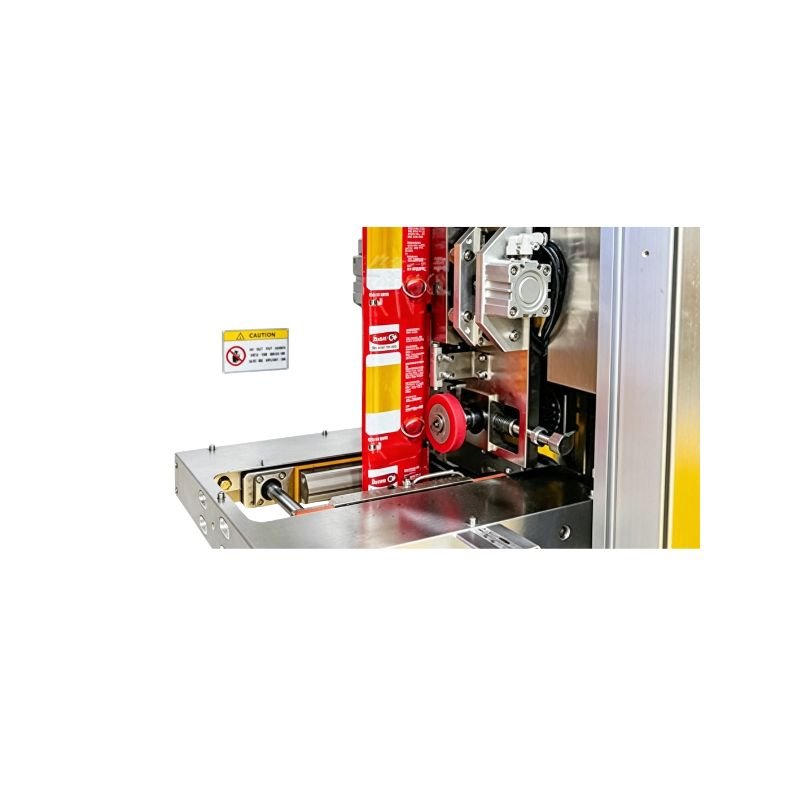

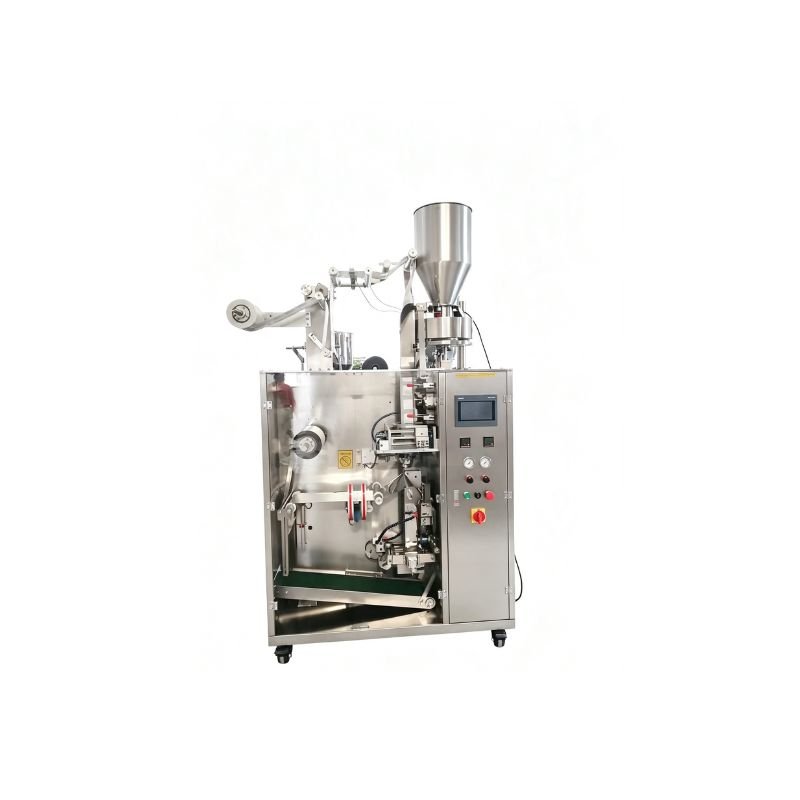

Filter Tea Bag with Envelope Packing Machine
Model No.: DZ-400
Quick bagging of larger sized pouches
packed with powders and food products
Tailor your multihead weigher packing system to your industry needs. The adaptable VFFS machine, fitting a wide range of products, is the budget-conscious solution.
Max Speed
45 bpm
Inner Bag Size
Min
50 x 50 mm (2.0 x 2.0″)
Max
75 x 75 mm (3.0 x 3.0″)
Features
- Able to make drip coffee bag with an outer bag in one machine
- 304 stainless steel frame
- Mitsubishi PLC control

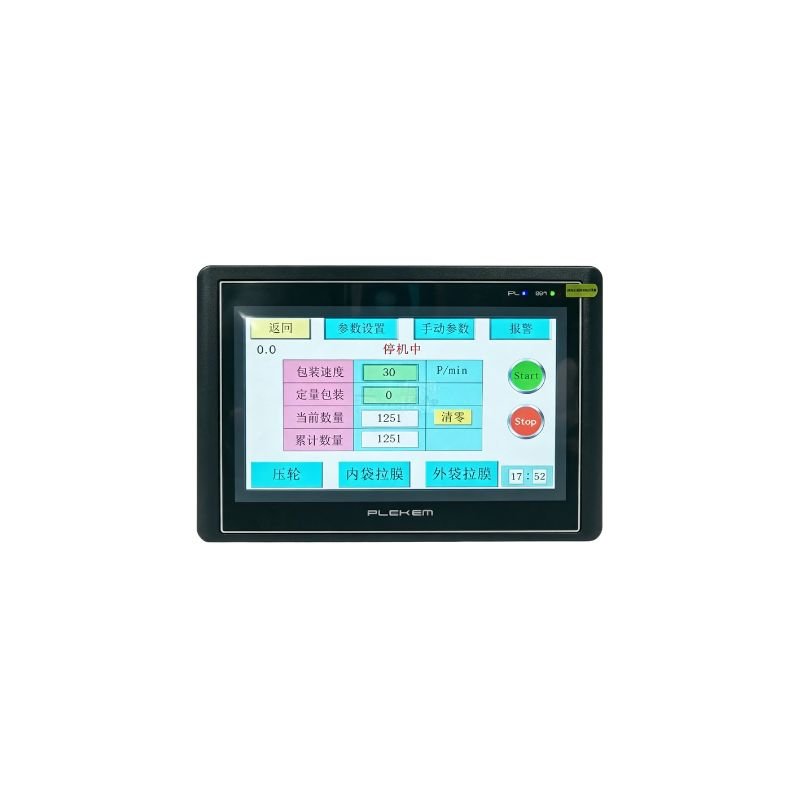

- Multi-Language HMI
- Automatic count & stop
- Photoelectric eye
- Guard door
- Date Printer
- Runs most film material
- Storage for 100 product recipes
Options
- Various filling systems for coffee, tea, herbal or powders
- Tear notch
- Materials infeed conveyors
- Package collator conveyors
- Metal detectors
- Checkweigher
- Bag deflators
Specification
DZ-D400 Packaging Machine Specifications
| Air supply requirement | 0.6m³/min |

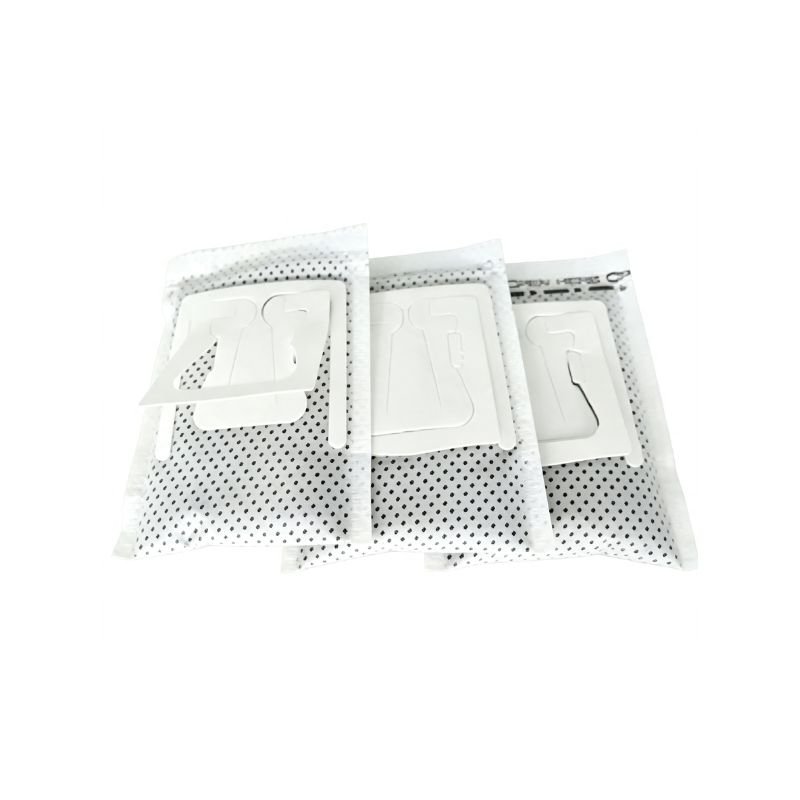

| Bag type | Drip coffee bag / Steeped coffee bag with envelope |
| Envelope bag size | Length: 85-120 mm (3.3-4.7") Width: 75-95 mm (3.0-3.7") |
| Inner bag size | Length: 50-75 mm (2.0-3.0") Width: 50-75 mm (2.0-3.0") |
| Machine size | 1345 x 779 x 2262 mm (52.95 x 30.67 x 89.06") |
| Machine Weight | 650kg |
| Packaging Speed | 30-45 bags/minute |
| Power | 220V 50-60Hz (Customizable) 3.7KW |
| Recommended Size | Inner bag: 74 x 90 mm (2.9 x 3.5") Envelope: 100 x 120 mm (3.9 x 4.7") |
| Weighing Method | Auger filler / Multihead weigher / Volumetric cup filler |
Industries & Applications

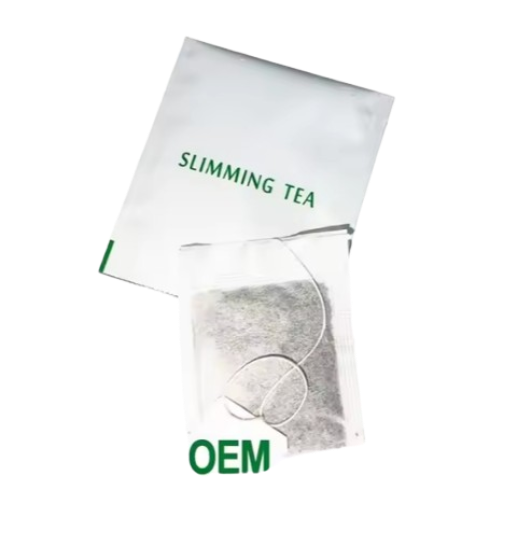

Slimming Tea

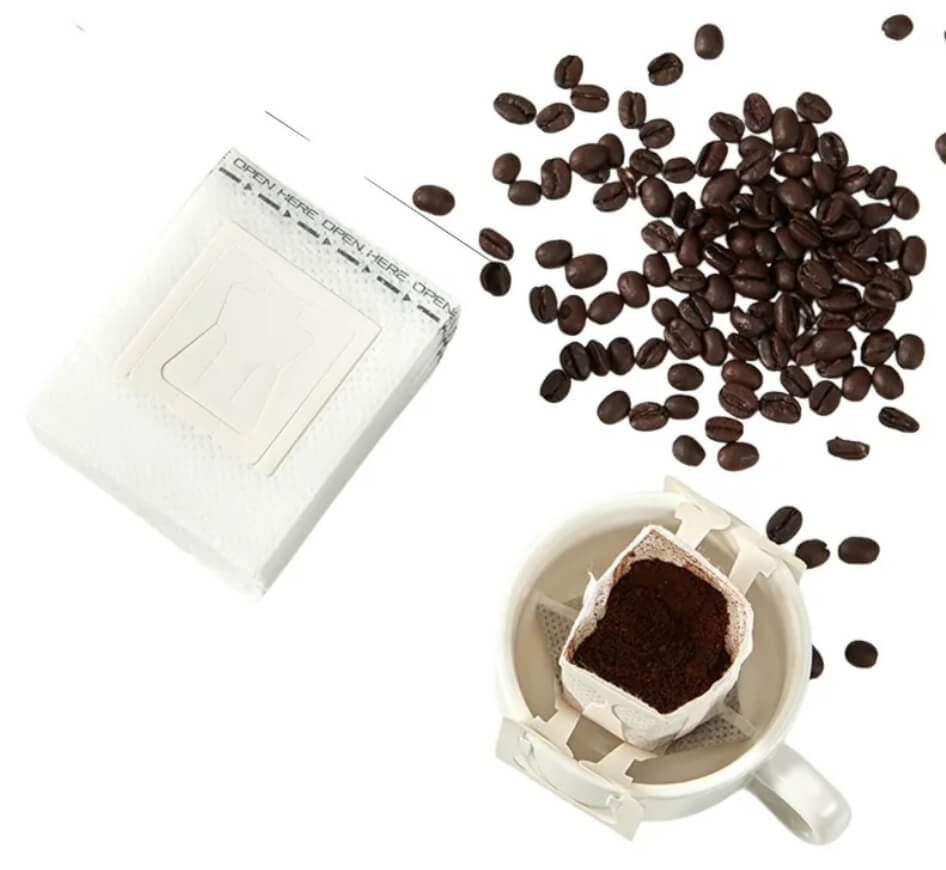

Coffee
Scented Tea
Green Tea
BagType
Film Material
- The laminated film, laminated paper film, aluminum foil film
Optional Features
- Hanging hole, euro slot, carry handle, tear notch
